• 2.0.0 (Aug 2020)

  • New security headers (see Security -> Request Signing)
  • Updates to Person and Entity schema in entity-person; See Understanding the Data Structure for details
  • Updated new API urls to /v2/
  • Response changes from JWE to JWE wrapping JWS
  • Updated maxlength for some fields in entity that did not have this
    • block
    • building
    • street
    • unit
    • floor
  • Updated SSIC reference from SSIC 2015 to SSIC 2015 (version 2018)
  • New data items available:
    • licences
    • gov-contracts
    • builders
    • contractors
    • corppass-contacts
  • Updated type enum for person regadd and entity addresses
    • Unformatted to UNFORMATTED
  • Update of Certificate Authority list
    • Comodo to Comodo/Sectigo
    • New CA: Netrust
  • Updated TLS version to only 1.2
  • Updated recommended cipher suites

• 1.0.0 (Feb 2019)

  • Updated data items:
    • noa(basic) to noa-basic
    • noahistory(basic) to noahistory-basic

• 0.2.5 (15 July 2019)

  • Updated description for entity appointments and shareholders category:
    • If appointment holder or shareholder does not fall in any of the listed categories, the field will return ""
      • 1 - Individual
      • 2 - Local Company
      • 3 - Foreign Company
      • 4 - Unregistered Local Entity
      • 5 - Limited Liability Partnerships
      • 6 - Unregistered Foreign Entity

• 0.2.4 (05 Dec 2018)

  • Base URL changes:

    • Production Environment: from myinfosg.api.gov.sg to api.myinfo.gov.sg
    • Test Environment: from myinfosgstg.api.gov.sg/test to test.api.myinfo.gov.sg
    • Sandbox Environment: from myinfosgstg.api.gov.sg/dev to sandbox.api.myinfo.gov.sg

  • Security header (.e. no longer needed in basestring)

    • Before v0.2.4, when crafting the basestring of the security header, an additional .e. is required in the domain name: e.g. myinfosgstg.api.gov.sg -> myinfosgstg.e.api.gov.sg.
      Note: This is no longer required
    • In v0.2.4, when crafting the basestring of the security header, the url in the basestring is the same as the one you call; e.g. api.myinfo.gov.sg
    • For more details, please refer to Security > Request Signing section for updated instructions.

  • Data items deprecated:

    • assessyear
    • assessableincome

  • New data items available:

    • noa(basic)
    • noa
    • noahistory(basic)
    • noahistory

  • Added link to MyInfo Business demo app under Support section for easy reference.

• 0.2.3 (19 November 2018)

  • Updated Entity Type field to encompass more entity types.
  • Added Company Type and Business Constitution to give further breakdown to Company and Business entity types.

• 0.2.2 (9 November 2018)

  • Updated endpoint urls to end with /.

• 0.2.1 (29 August 2018)

  • Updated description for Nationality to include a note on known issue for Singapore PR (code value: SP).

• 0.2.0 (3 August 2018)

  • Added Entity-Person-Sample with no authentication for sandbox testing.
  • Re-ordered response schema from Entity-Person call such that Entity object is before Person object.

• 0.1.1 (24 July 2018)

  • Updated "sub" in access_token to have the format uen_uinfin
  • Updated description of uen and unifin path parameters of Entity-Person API indicating that value can be obtained from "sub" in decoded access_token.

• 0.1.0 (20 June 2018)

  • Initial Release for Pilot

The RESTful API adopts Semantic Versioning 2.0.0 for releases, and every new release of the API increments the version numbers in the following format:

{MAJOR}.{MINOR}.{PATCH}

1. {MAJOR} number introduces incompatible API changes with previous {MAJOR} number also resets {MINOR} to 0,
2. {MINOR} number introduces new functionalities or information that are backward compatible also resets {PATCH} to 0, and
3. {PATCH} number introduces bug fixes and remains backward compatible.

Pre-release or draft versions, when provided, are denoted by appended hypen - with a series of separate identifiers {LABEL}-{VERSION} following the {PATCH} number. Such releases are unstable and may not provide the intended compatibility with the specification in draft status.

Serving as notice, the RESTful API in version 2.X.X are incompatible with version 1.X.X releases.

Despite backward compatibility in {MINOR} or {PATCH} releases, API consumers are best to evaluate and determine their implementation does not disrupt use-case requirements.

• There is a known issue with the Nationality field, where the return value sometimes will be SP which refers to "Singapore Permanent Resident". This value will be moved to a separate "Residential Status" field in later releases.

The following diagram illustrates how the integration with MyInfo Business APIs work:

As shown above, your application will be interfacing with our API Gateway to integrate successfully with MyInfo Business.

The RESTful API provides both testing and live environments accessible over the Internet via HTTPS.

Consumers are to ensure firewall clearance on their edge network nodes for connecting to the APIs.

The convention used by API endpoints' URL are in the following format:

https://{ENV_DOMAIN_NAME}/{CONTEXT}/{VERSION}/{RESOURCE}

• {ENV_DOMAIN_NAME} indicates MyInfo's API domain names - respectively:

  • sandbox.api.myinfo.gov.sg, or
  • test.api.myinfo.gov.sg, or
  • api.myinfo.gov.sg, following

• /{CONTEXT}, indicates the context of the API call = /biz

• /{VERSION} indicates the endpoint's release {MAJOR} version number path - for this release = /v2

• /{RESOURCE} indicates the API resource path name.

Any additional query string parameters are appended as needed.

1. Sandbox Environment

The sandbox environment is used for your testing when developing your prototype. The Entity-Person-Sample and Entity-Person API will return test data previously shared by our officer via email. For test data matters, please contact us.

Note:

• Domain Name: sandbox.api.myinfo.gov.sg
• PKI digital signature is not required for all APIs.
• Authorization Bearer access token is not required in Entity-Person-Sample API.
• Authorization Bearer access token is required in Entity-Person API.

2. Test Environment

The test enviroment is used for testing your application with the full security measures required in production. The Entity-Person API will return test data previously shared by our officer via email. For test data matters, please contact us.

Note:

• Domain Name: test.api.myinfo.gov.sg
• PKI digital signature is required for Token and Entity-Person APIs.
  Refer to Security > Request Signing for the steps to sign your request.
• Authorization Bearer access token is required in Entity-Person API.

3. Production Environment

The production enviroment is the actual live environment with full security measures and live data.

Note:

• Domain Name: api.myinfo.gov.sg
• PKI digital signature is required for Token and Entity-Person APIs.
  Refer to Security > Request Signing for the steps to sign your request.
• Authorization Bearer access token is required in Entity-Person API.

The following are the scheduled downtimes for the various environments:

Production Environment

• CPFB data - Everyday 5:00am to 5:30am
• IRAS data - Every Wed, 2:00am to 6:00am, Every Sun, 2:00am to 8:30am
• Once a month, Sunday 12:00 am to 8:00 am (date to be advised)

Sandbox Environment

• none

Test Environments

• none

MyInfo Business's API gateway supports accessing of APIs via the following interfaces:

• HTTP version 1.1 connection over TLS (Transport Layer Security) version 1.2 standards, and cipher suites:

  • using AES (Advanced Encryption Standard) and SHA (Secure Hash Algorithm),
  • on either GCM (Galois/Counter Mode) or CBC (Cipher Block Chaining) mode.

• Below is the list of recommended cipher suites that you may use:

  • TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256
  • TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256
  • TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384
  • TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384

IMPORTANT: ensure your server supports TLS 1.2 and supports a cipher suite in the list above.

Accessing the RESTful API using prior versions of TLS or unsupported cipher suites will result in connectivity errors. MyInfo Business' API gateway does not support 2-way TLS client nor mutual authentication.

API HTTP interface features:

1. JSON (JavaScript Object Notation) is the supported data media format and indicated in Content-Type header application/json, also
2. Content-Length header is omitted by having Transfer-Encoding header chunked emitted for streaming data, and
3. GZip (GNU Zip) response compression is supported by opt-in Accept-Encoding: gzip and indicated in Content-Encoding header gzip.

MyInfo Business APIs use OAuth2.0 authorisation code flow to perform authentication & authorisation.

The sequence diagram below illustrates the steps involved in integrating your application with our APIs:

The flow consists of 3 APIs:

1. Authorise

   • This will trigger the CorpPass login and consent page. Once successful, your application will receive the authorisation code via your callback url.

2. Token

   • Call this server-to-server API with a valid authorisation code to get the access token.

3. Protected Resource (Entity-Person)

   • Call this server-to-server API with a valid access token to get the entity and person data.

Access to all server-to-server APIs will be authenticated by MyInfo Business' API gateway. Prior to consumption of API, respective consumers are required to have:

• approval of access, onboarding process for the required API resources will be provisioned, and
• authentication credentials are then supplied and exchanged.

Authentication methods provided by MyInfo Business' API gateway on internet:

• OAuth 2.0 using SHA256withRSA digital signature (see "Request Signing" section below)
• Digital signature should be produced using a RSA private key with corresponding public certificate issued by one of the following compatible CAs:
  • Comodo/Sectigo
  • digiCert
  • Entrust
  • GeoTrust
  • GlobalSign
  • Netrust
  • Thawte
  • VeriSign

NOTE: Test and Production Environments only

All server-to-server API requests are to be digitally signed, by including the following parameters and values in the Authorization header:

PKI_SIGN app_id="{app_id}",
nonce="{random_nonce}",
signature_method="RS256",
signature="{base64_url_percent_encoded_signature}",
timestamp="{unix_epoch_in_milliseconds}"

Note: Above sample is separated by lines for ease-of-reading, and new-line denotations are to be omitted in the actual request.

• {app_id} is the APP ID credential supplied upon onboarding,

• {random_nonce} is an unique randomly generated text used for replay prevention,

• {signature_algorithm} is the signature algorithm of the authenticating gateway.

  • Value of signature_algorithm = RS256

• {base64_url_percent_encoded_signature} is the binary of the generated signature encoded in Base64 URL-safe format,

• {unix_epoch_in_milliseconds} is the UNIX epoch time in milliseconds

Sample header with authorization parameters

Below is an example of an Authorization header for the sample application. Make sure you list the parameters in the sequence shown below.

  Authorization: PKI_SIGN
  app_id="STG2-MYINFOBIZ-SELF-TEST",
  nonce="150590021034800",
  signature_method="RS256",
  signature="EEm+HEcNQajb5FkVd82zjojk+daYZXxSGPCOR2GHZeoyjZY1PK+aFMzHfWu7eJZYMa5WaEwWxdOdq5hjNbl8kHD7bMaOks7FgEPdjE++TNomfv7SMktDnIvZmPYAxhjb/C9POU2KT6tSlZT/Si/qMgD1cryaPwSeMoM59UZa1GzYmqlkveba7rma58uGwb3wZFH0n57UnouR6LYXDOOLkqi8uMZBuvRUvSJRXETAj2N0hT+4QJiN96Ct6IEQh/woZh0o74K5Ol9PpDSM08qC7Lj6N/k694J+hbBQVVviGn7/6mDkfbwdMDuoKs4t7NpqmAnwT+xaQSIZcexfrAVQYA==",
  timestamp="1505900210349"

Sample Code in NodeJS

  // generates the security headers for calling API gateway
  function generateAuthorizationHeader(url, params, method, strContentType, authType, appId, keyCertContent, passphrase) {

    if (authType == "L2") {
      return generateRS256Header(url, params, method, strContentType, appId, keyCertContent, passphrase);
    } else {
      return "";
    }
  };

  // Signing Your Requests
  function generateRS256Header(url, params, method, strContentType, appId, keyCertContent, keyCertPassphrase) {
    var nonceValue = nonce();
    var timestamp = (new Date).getTime();

    // A) Construct the Authorisation Token Parameters
    var defaultAuthHeaders = {
      "app_id": appId, // App ID assigned to your application
      "nonce": nonceValue, // secure random number
      "signature_method": "RS256",
      "timestamp": timestamp // Unix epoch time
    };

    // B) Forming the Base String
    // Base String is a representation of the entire request (ensures message integrity)

    // i) Normalize request parameters
    var baseParams = sortJSON(_.merge(defaultAuthHeaders, params));

    var baseParamsStr = qs.stringify(baseParams);
    baseParamsStr = qs.unescape(baseParamsStr); // url safe

    // ii) concatenate request elements (HTTP method + url + base string parameters)
    var baseString = method.toUpperCase() + "&" + url + "&" + baseParamsStr;

    // C) Signing Base String to get Digital Signature
    var signWith = {
      key: fs.readFileSync(keyCertContent, 'utf8')
    }; // Provides private key

    // Load pem file containing the x509 cert & private key & sign the base string with it to produce the Digital Signature
    var signature = crypto.createSign('RSA-SHA256')
      .update(baseString)
      .sign(signWith, 'base64');

    // D) Assembling the Authorization Header
    var strAuthHeader = "PKI_SIGN app_id=\"" + appId + // Defaults to 1st part of incoming request hostname
      "\",timestamp=\"" + timestamp +
      "\",nonce=\"" + nonceValue +
      "\",signature_method=\"RS256\"" +
      ",signature=\"" + signature +
      "\"";

    return strAuthHeader;
  };

NOTE: Entity-Person APIs only

Access Tokens are in JWT format. This JWT complies to the standard 'JSON Web Token (JWT) Profile for OAuth 2.0 Client Authentication and Authorization Grants' (https://tools.ietf.org/html/rfc7523). You will need to verify the token with our public cert (provided during application onboarding).

Sample Code in NodeJS

  // Sample Code for Verifying & Decoding JWS or JWT
  function verifyJWS(jws, publicCert) {
    // verify token
    // ignore notbefore check because it gives errors sometimes if the call is too fast.
    try {
      var decoded = jwt.verify(jws, fs.readFileSync(publicCert, 'utf8'), {
        algorithms: ['RS256'],
        ignoreNotBefore: true
      });
      return decoded;
    }
    catch(error) {
      throw("Error with verifying and decoding JWS");
    }
  }

NOTE: Entity-Person APIs in Test and Production environments only

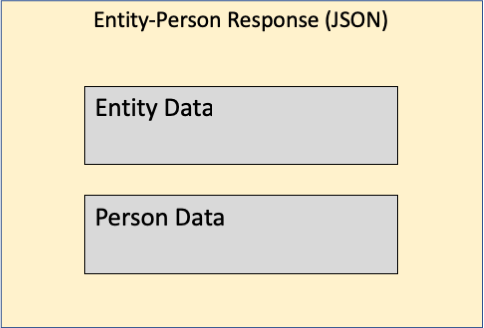

The response payload for the Entity-Person API (for test and production environments) is first signed, then encrypted:

• Signing is done using JWS (JSON Web Signature) format
• Encryption is done using JWE (JSON Web Encryption) Compact Serialization format

Encryption protects the data at rest while a signed payload means, if necessary, you will be able to pass this signed payload to a 3rd party where they can verify the payload's integrity with our public certificate.

In order to read the payload, you have to perform the following steps in order:

1. Decrypt the payload with your application's private key.
2. Validate the decrypted payload signature with our public key.
3. Decode the verified JWS payload using Base64 decode.

After doing the above steps, your application will be able to extract the payload in JSON format.

STEP 1: Decryption

• Encryption is done using your application's public key that you provided during onboarding. Decryption of the payload should be using the private key of that key-pair.
• Current encryption algorithms used:
  • RSA-OAEP (for content key wrapping)
  • AES256GCM (for content encrytion)

Sample Code in NodeJS

  // Sample Code for decrypting JWE
  // Decrypt JWE using private key
  function decryptJWE(header, encryptedKey, iv, cipherText, tag, privateKey) {

    return new Promise((resolve, reject) => {

      var keystore = jose.JWK.createKeyStore();

      var data = {
        "type": "compact",
        "ciphertext": cipherText,
        "protected": header,
        "encrypted_key": encryptedKey,
        "tag": tag,
        "iv": iv,
        "header": JSON.parse(jose.util.base64url.decode(header).toString())
      };
      keystore.add(fs.readFileSync(privateKey, 'utf8'), "pem")
        .then(function(jweKey) {
          // {result} is a jose.JWK.Key
          jose.JWE.createDecrypt(jweKey)
            .decrypt(data)
            .then(function(result) {
              resolve(JSON.parse(result.payload.toString()));
            })
            .catch(function(error) {
              reject(error);
            });
        });

    })
    .catch (error => {
      throw "Error with decrypting JWE";
    })
  }

STEP 2: Verification of Signature

The decrypted payload is signed according to JWS (JSON Web Signature) format, similar to the access token.

• signature algorithm used is RS256.

Sample Code in NodeJS

  // Sample Code for Verifying & Decoding JWS or JWT
  function verifyJWS(jws, publicCert) {
    // verify payload
    // ignore notbefore check because it gives errors sometimes if the call is too fast.
    try {
      var decoded = jwt.verify(jws, fs.readFileSync(publicCert, 'utf8'), {
        algorithms: ['RS256'],
        ignoreNotBefore: true
      });
      return decoded;
    }
    catch(error) {
      throw("Error with verifying and decoding JWS");
    }
  }

MyInfoBiz Entity and Person data follows a specific structure that you need to understand to traverse the data effectively. This section will explain the structure in detail.

The Entity-Person response includes both an Entity and a Person object (see diagram):

The diagram below illustrates how the Entity data is represented logically:

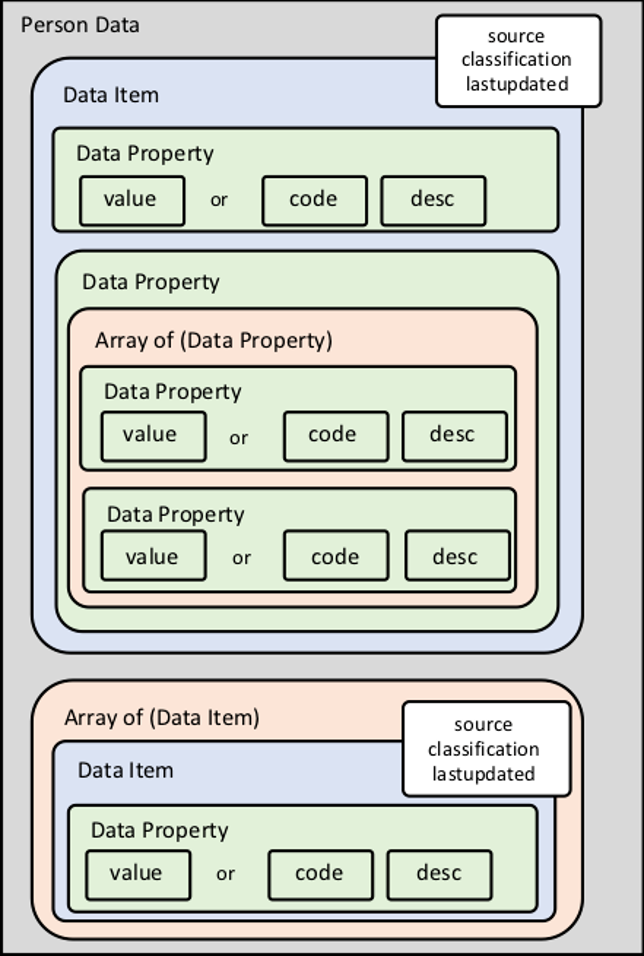

The diagram below illustrates how the Person data is represented logically:

Data Items are attributes that can be requested in the API. Each top-level data item can either be a data item object or an array of data item objects. Each data item object will consist of the following properties:

• source (see below)
• unavailable (in certain situations - see below)
• additional data properties containing data values or arrays

Data Source

The source property indicates the source of data. Possible values are:

• '1' - Government-verified
• '2' - User Provided
• '3' - Field is Not Applicable to this Entity
• '4' - Verified by SingPass

In each data item, there can be multiple data properties or arrays of data properties.

Each data property will contain either:

• a value property, or
• a pair of code and desc properties, or
• an array of data properties, or
• other data properties

Note:

• value property can be strings, numbers, or dates.
• code and desc pairs will contain the code and its matching description.
• value is mutually exclusive from (code + desc); i.e. if there is a value, there will not be any code or desc.
• Where there is code, there will always be a desc - no value will be present.

Exceptions: For these cases, the values will be directly in the property and not in a value, code or desc subproperty:

• for data item metadata properties; e.g. source and unavailable
• for discriminator properties; e.g. type in address formats

Sometimes, a requested data item or data property is not applicable to the entity. Examples include:

• a Business Entity (entitytype = BN) will never have a shareholders data item.
• a Business Entity (entitytype = BN) will never have a declarations data item.
• a Local Company (entitytype = LC) will never have commencment-date data property.

For a full list, refer to the descriptions in each of the data properties of the entity data model.

Data Item Not Applicable

When a requested data item is not applicable to the entity:

• for data item objects, the source property will be 3
• for data item arrays, an empty array will be returned

In such cases, please ignore the data item completely. Check out the different Entity schemas for each type by selecting the different entitype discriminator in the specifications. E.g. if you choose "BN" (Business) entity type, you will see that shareholders schema is an empty array.

Data Property Not Applicable

• The Entity object has a entitytype discriminator which helps to specify the data properties applicable to each entity type.
• When a data property is not applicable to the entity, it will not appear in the schema of that particular entity type.

In other situations, a requested data item might not have any data for that data item from the data source; i.e. data is unavailable. Examples include:

• when an entity does not have any grants submitted/approved

Data Item Unavailable

• for data item objects, the data item will have the property unavailable with value true.
  In such cases, no additional properties (other than source) will be provided for the data item.
• for data item arrays, an empty array will be returned.

Please display as "Not Available" in your form.

Data Property Unavailable

• for data property objects, the value or code/desc will be empty value ("") or NaN.
• for arrays of data properties, an empty array will be returned.

The RESTful API(s) uses HTTP specification standard status codes to indicate the success or failure of each request. Except gateway errors, the response content will be in the following JSON format:

{
    "code": "integer (int32)",
    "message": "string"
}

Refer to the individual API definitions for the error codes you might encounter for each API.

Please refer to the links below for the following supporting materials where relevant:

• MyInfo Business demo app
• Code reference tables (for Entity object)
• Code reference tables (for Person object)
• Test accounts for test environments (please contact us)
• Reference user journey templates (please contact us)

For technical queries, contact support@myinfo.gov.sg.

For business queries, contact partner@myinfo.gov.sg.

Entity-Person API resource operations to access corporate entity and person details.
